Mircom® Manual Pull Station (Conventional)

MS-400

Attractive and durable, Mircom’s MS-400 Series Manual Stations provide manual fire re-reporting. The MS-400 Series manual stations are non-coded, single or double action devices that initiate an alarm when pulled. Resetting is accomplished by inserting a 1/8” screwdriver from the front. The handle once pulled will remain open and cannot be reset without utilizing the screwdriver.

FEATURES:

• Durable Extruded Aluminium Construction
• Attractive, Low Profi le Design
• Standard Single Gang Mount
• Converts to Double Action
• Glass Rod Optional (one provided)

MS-401, Single Stage Pull Station (N.O. with Station Closed)

MS-402, Dual Stage Pull Station

Alarm Contact & Key Switch Contact are N.O. with Station Closed
MS-402 contains an additional General Alarm (G.A.) N.O. switch. For safety reasons, the G.A. switch is only accessible after the handle has been pulled. A special key is supplied with each unit.

MS-405, Single Stage Pull Station with additional N.O. switch

Alarm Contact is N.O. & Extra Contact is N.O. with Station Closed

MS-407, Single Stage Pull Station with additional N.C. switch

Alarm Contact is N.O. & Extra Contact is N.C. with Station Closed
MS-407 has an additional N.C. switch.

MS-408, Dual Stage Pull Station with additional N.C. switch

Alarm & Key Switch Contacts are N.O. & Extra Contact is N.C. with Station Closed
The MS-402, MS-406 and MS-408 (two stage versions) also provide a key switch which is accessible after the handle has been pulled. The operation of the key switch, when connected to a separate general alarm circuit, will initiate the 2nd stage of a two-stage alarm signaling system.

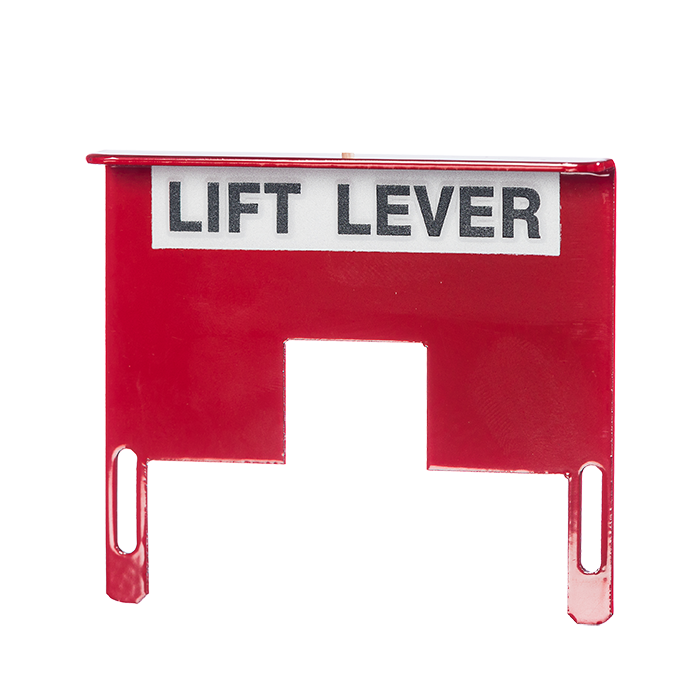

MSDA, Manual Pull Station Double Action Lever Kit

Secutron MRM-MPG1
Mircom MS-403/404 Emergency Manual Stations
Mircom MS-400 Series

GL004K, Replacement Break Rods, 10/pkg

Secutron MRM-MPG1
Mircom MS-403/404 Emergency Manual Stations

BB300, Surface Mounting Box, Single Gang, Red

Secutron MRM-MPG1
Mircom MS-403/404 Emergency Manual Stations
MS-400ID Intelligent Pull Station
Mircom MS-400 Series

MS-403/404

Attractive and durable, Mircom’s MS-403 & MS- 404 Emergency Manual Stations provide manual emergency reporting. The MS- 403 and MS-404 Emergency Manual Stations are non-coded, single action devices which initiate both a N.O. and N.C. contact when pulled. Operating instructions shall be in English and French lettering and the unit shall be constructed of extruded aluminum and finished in bright enamel paint to provide quick identification.

MS-403, Single Action, Blue Manual Station

MS-404, Single Action, Yellow Manual Station

MS-700

MS-702, Single Action Bilingual Two Stage Pull Station c/w Key Switch

The MS-702 (two stage) is similar to the MS- 701 (single stage) except it contains an additional General Alarm (G.A.) N.O. switch. For safety reasons, the G.A. switch is only accessible after the handle has been pulled. A special key is supplied with each unit.

MS-710, Dual Action Bilingual Pull Station c/w Key Reset & Terminal Connection

Model MS-710 is a single stage, dual action manual station.

BB-700, Series 700 Surface Mount Backbox Red

MS-700 Manual Alarm Pull Station
MS-700ID Intelligent Pull Station

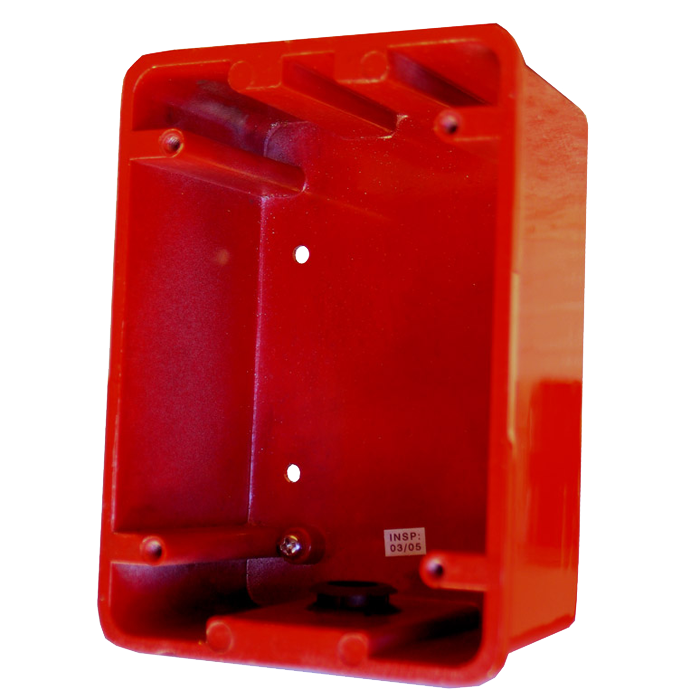

BB-700WP, Series 700 Weather Proof Surface Mount Backbox Red

MS-700 Manual Alarm Pull Station

MS-700U

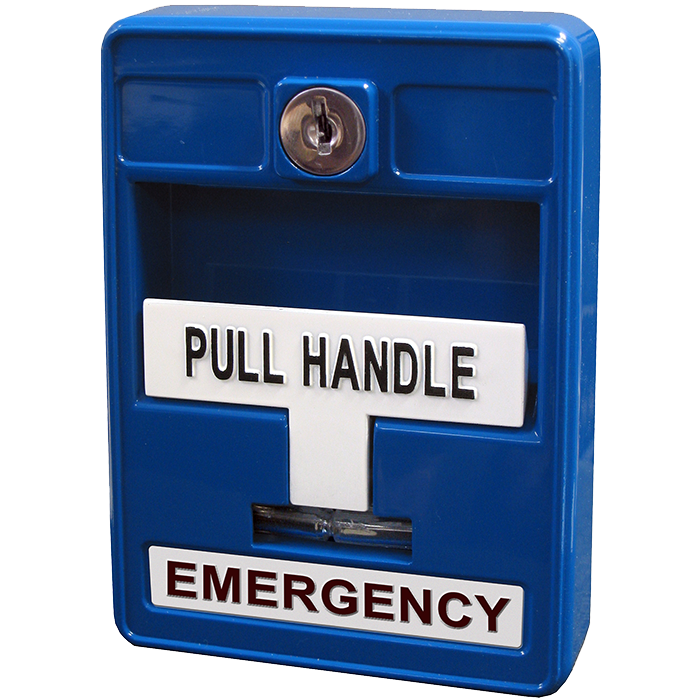

MS-703U, Blue Single Action Emergency Station

w/ 2 Form ‘C’ Contacts Key Resettable, English Only

MS-704U, Yellow Single Action Emergency Station

w/ 2 Form ‘C’ Contacts Key Resettable, English Only
